Webasto FCF Platinum 6000 BTU Marine Air Conditioner 115V
$953.00

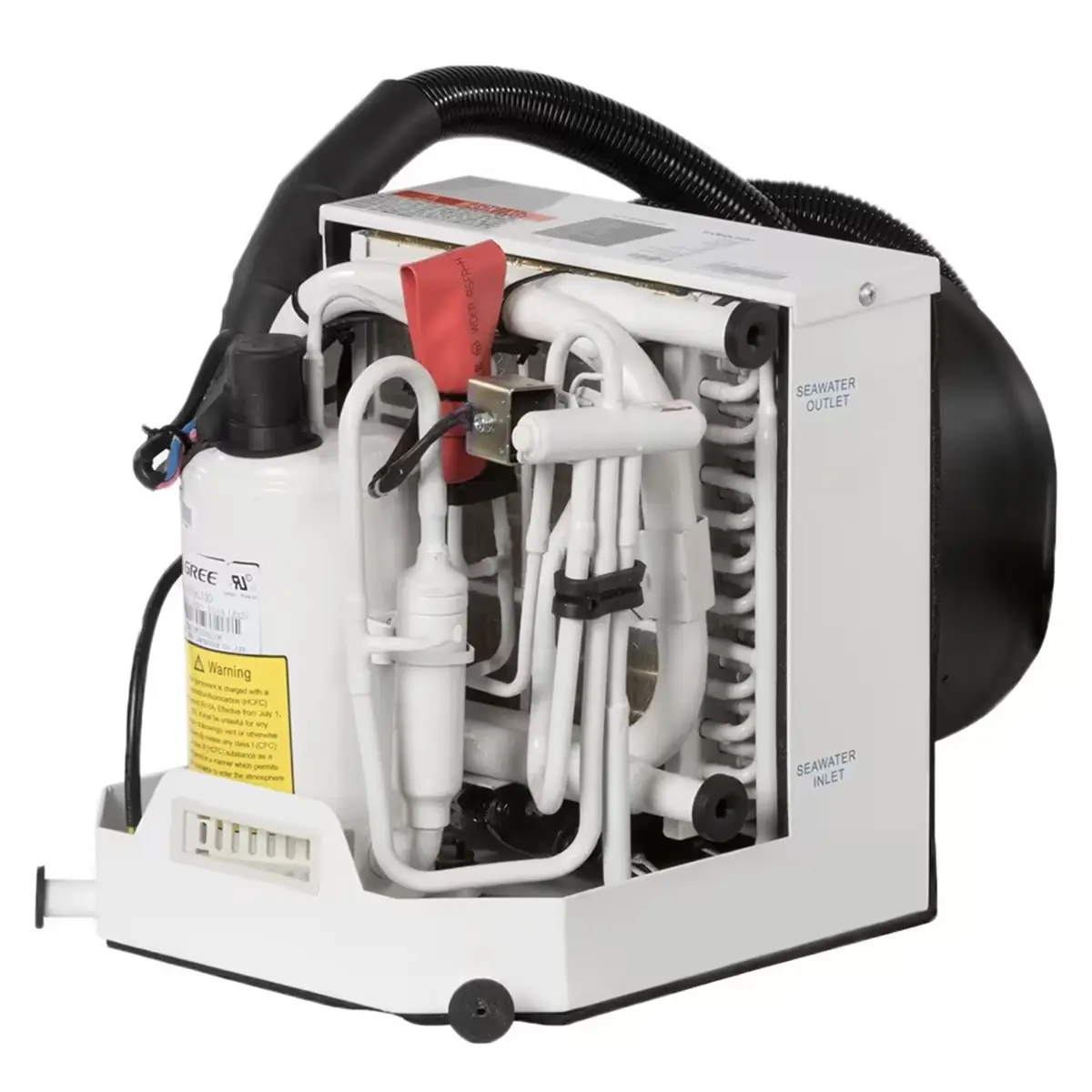

Webasto FCF Platinum 6000 BTU Marine Air Conditioner 115V is a compact marine climate control unit with reverse cycle heating, digital control, and R410A refrigerant. Built for replacement-focused installations, it includes a rotatable blower, electrical box, air filter, and a 2-year warranty.
Overview Webasto FCF Platinum 6000 BTU Marine Air Conditioner 115V
Webasto FCF Platinum 6000 BTU Marine Air Conditioner 115V is a 6,000 BTU marine climate control unit built for 115V, 60Hz operation with reverse cycle heating and standard digital control components. As part of the FCF Platinum series, this model is presented with an improved design and a higher BTU/h rating across a variety of ambient scenarios. The digital display, controller, and cable are included, helping simplify replacement planning for existing marine A/C systems.
This model uses R410A refrigerant and features a long, slim footprint intended to support easier replacement of existing units. It also includes a marine-grade stainless steel frame, a proprietary well-balanced compressor, and a high-velocity 360° rotatable blower for flexible airflow direction. For buyers replacing a Dometic DTU6 115V system, the product data identifies this unit as a good replacement option and provides installation notes to review before fitting.
Key Features of Webasto FCF Platinum 6000 BTU Marine Air Conditioner 115V
- 6,000 BTU/h cooling capacity with 6,000 BTU/h heating capacity.
- 115V / 60Hz electrical specification with 4.7A rated current.
- Reverse cycle heating supports both cooling and heating operation.
- Digital display, controller, and cable come standard.
- Long and slim footprint is designed to simplify replacement of existing units.
- Marine-grade stainless steel frame supports durability in marine environments.
- Proprietary compressor is described as well balanced and quieter than previous designs.
- High-velocity 360° rotatable blower helps direct airflow where needed.
- Uses R410A refrigerant with a refrigerant charge of 0.77 lb.
- Good replacement option for Dometic DTU6 – 115V systems.
Applications
This model is suited to boats that require a 115V marine air conditioner with 6,000 BTU cooling and reverse cycle heating. It is especially relevant for retrofit work where a compact footprint and included control components help with installation planning. Buyers replacing a Dometic DTU6 should review the noted ducting, water connection, and controller differences before ordering.
Why Choose This Marine Air Conditioner
The FCF Platinum 6000 115V gives buyers a clearly specified marine A/C option with matched cooling and heating capacity, defined electrical requirements, and standard digital control hardware. Its replacement-focused layout, marine-grade stainless steel frame, and documented Dometic DTU6 replacement notes make it easier to assess for upgrade projects. The included key components and 2-year warranty add practical buying clarity without relying on unsupported claims.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | FCF Platinum 6000 |
| Part Number | 5011394A |
| Cooling Capacity | 6,000 BTU/h |
| Heating Capacity | 6,000 BTU/h |
| Voltage | 115V |
| Frequency | 60Hz |
| Rated Current | 4.7A |
| Compressor LRA | 21A |
| Refrigerant | R410A |
| Refrigerant Charge | 0.77 lb |
| Seawater Inlet | 3/4" - 5/8" adapter included |
| Minimum Condenser Water Flow | 1.06 gal/min |

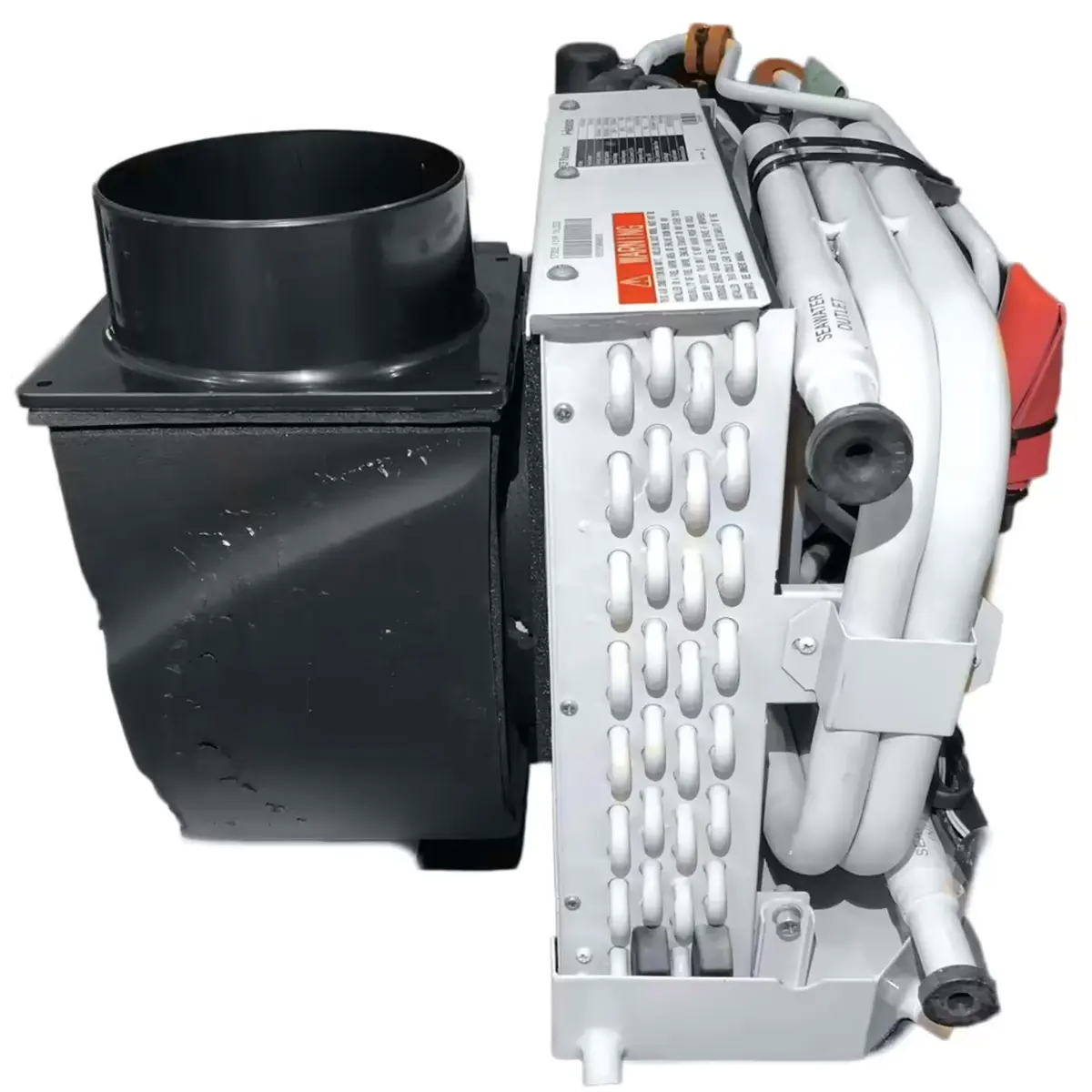

| Blower Connection Size | 100 mm / 4 in |
| Dimensions | 285 x 408 x 295 mm (11.2 x 16 x 11.6 in) |
| Weight | 25.5 kg / 56 lb |
| Warranty | 2-Year Warranty |

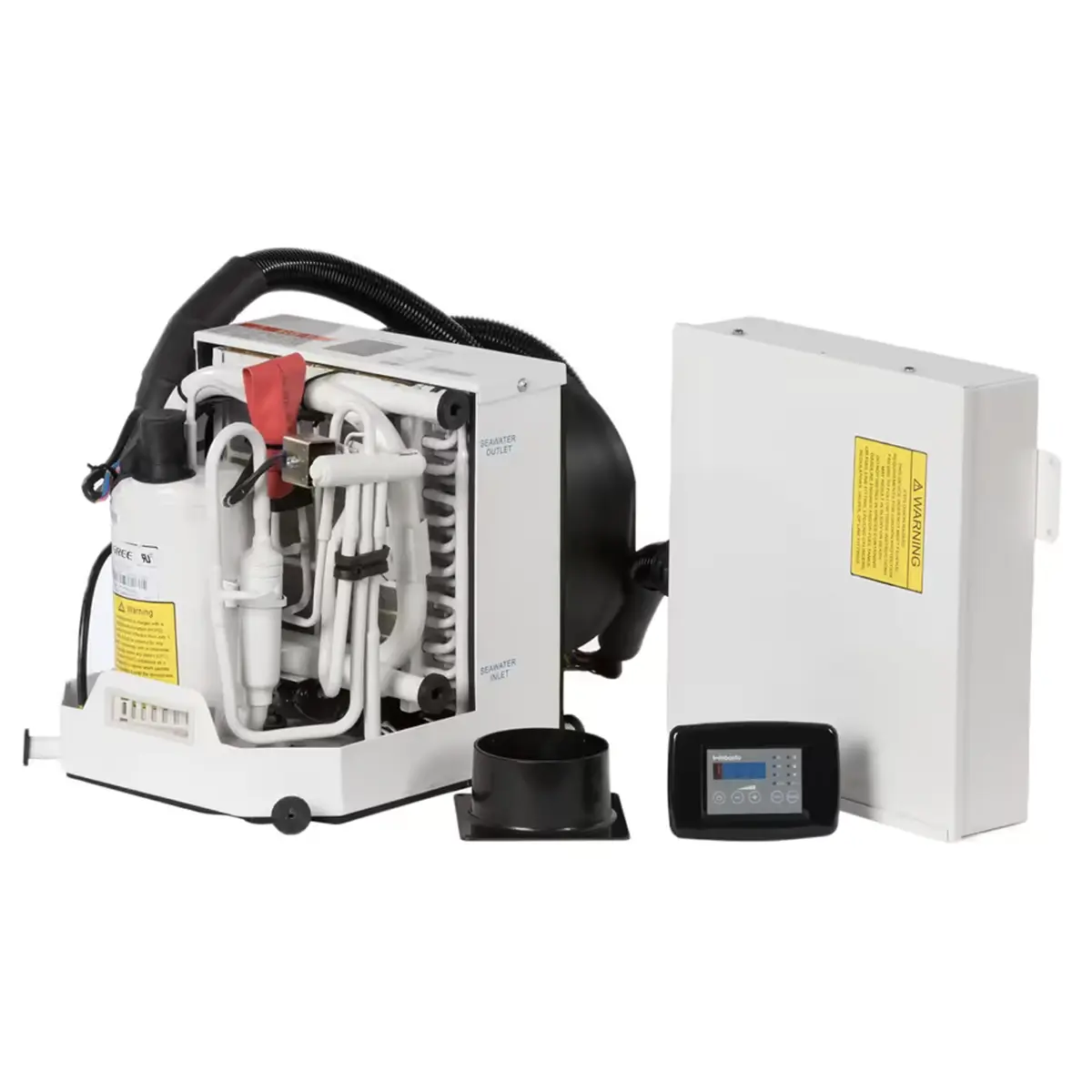

What's Included
- Webasto FCF Platinum 6000 BTU Marine Air Conditioner - 115V
- 4" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Platinum 6000 BTU Marine Air Conditioner 115V
Does this unit provide both cooling and heating?
Yes. The technical specifications list 6,000 BTU/h cooling capacity and 6,000 BTU/h heating capacity. The product details also confirm reverse cycle heating as a standard feature.
Is this a suitable replacement for a Dometic DTU6 115V unit?
Yes, it is described as a good replacement option for the Dometic DTU6 - 115V. The installation notes mention ducting differences, a condenser connection change that uses the included adapter, and the need to replace the controller and cable with the included Webasto components.
What is included with the Webasto FCF Platinum 6000?
The listed package contents include a 4" ducting collar, high-velocity 360° rotatable blower, remote mount electrical box, digital control with bezel, air filter, and R410A refrigerant. The product data states that remote control is optional and not included as standard.
Which installation specifications should be checked before purchase?
Verify the 115V / 60Hz electrical requirement, the 4-inch blower connection size, and the minimum condenser water flow of 1.06 gal/min. You should also confirm the unit dimensions of 11.2 x 16 x 11.6 inches and the 3/4" seawater inlet with included 5/8" adapter.
