Webasto FCF Platinum 10000 BTU Marine Air Conditioner 230V
$1,098.00
Webasto FCF Platinum 10000 BTU Marine Air Conditioner 230V is a compact marine climate control unit with reverse cycle heating, digital control, and R410A refrigerant. Designed for replacement-focused installations, it includes a rotatable blower, electrical box, air filter, and key control components for retrofit planning.
Overview Webasto FCF Platinum 10000 BTU Marine Air Conditioner 230V

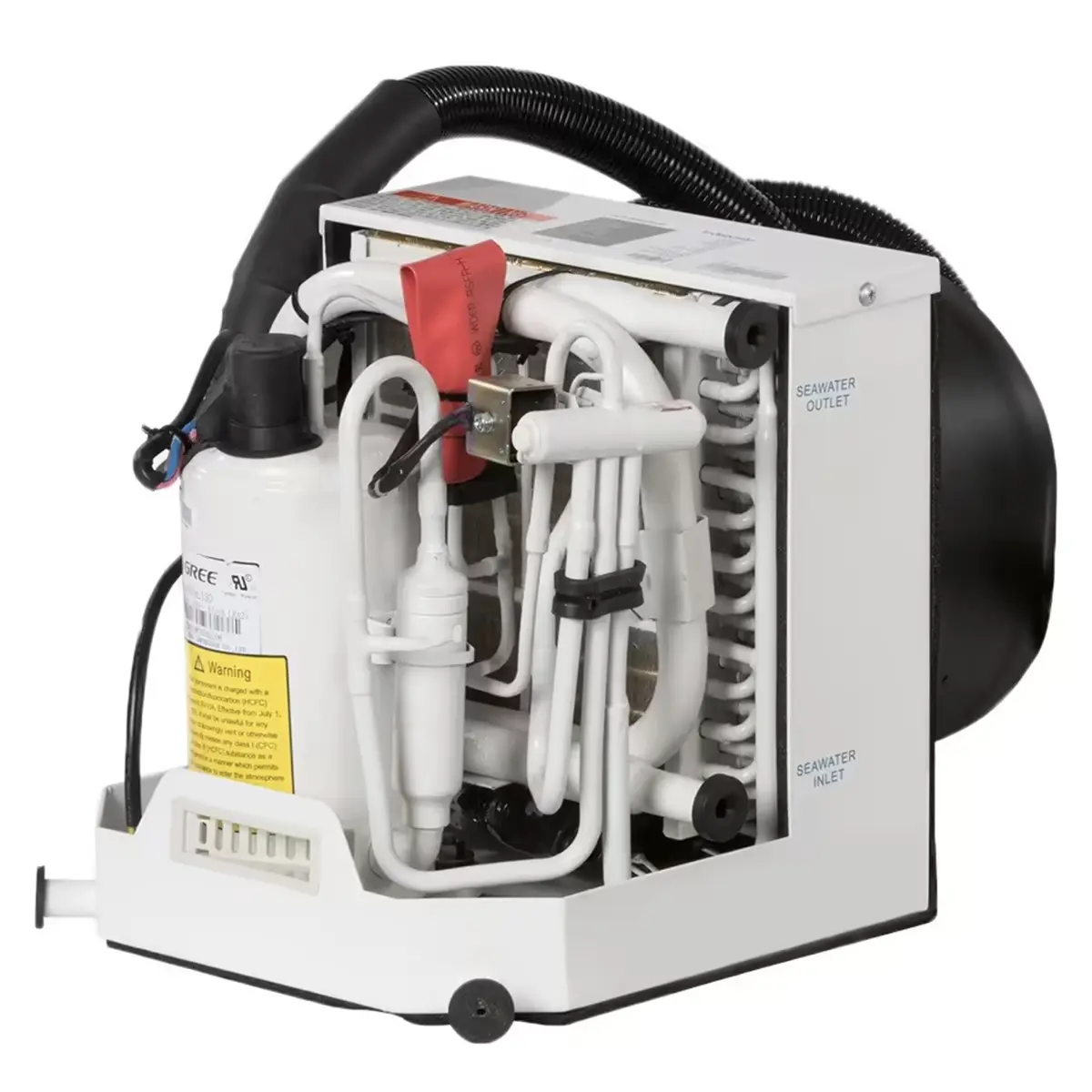

Webasto FCF Platinum 10000 BTU Marine Air Conditioner 230V is a 10,000 BTU marine climate control unit built for 230V, 50/60Hz operation with reverse cycle heating and standard digital control components. As part of Webasto’s FCF Platinum series, this model is presented as an updated design with a higher BTU/h rating across a variety of ambient scenarios. The digital display, controller, and cable are included, which helps simplify planning for replacement or upgrade projects.
This unit uses R410A refrigerant and features a long, slim footprint intended to support easier replacement of existing equipment. It also includes a marine-grade stainless steel frame, a proprietary well-balanced compressor, and a high-velocity 360° rotatable blower. For owners replacing a Dometic DTU10 230V system, the product data identifies this model as a good replacement option and provides specific installation notes to review before fitting.
Key Features of Webasto FCF Platinum 10000 BTU Marine Air Conditioner 230V
- 10,000 BTU/h cooling capacity with 10,000 BTU/h heating capacity.
- 230V operation with 50/60Hz compatibility.
- Rated current of 4.2 / 3.7A and compressor LRA of 17A.
- Reverse cycle heating function for dual-purpose climate control.
- Digital display, controller, and cable come standard.
- Long and slim footprint is designed to ease replacement of existing units.
- Marine-grade stainless steel frame supports marine durability.
- Proprietary compressor is described as well balanced and quieter than previous designs.

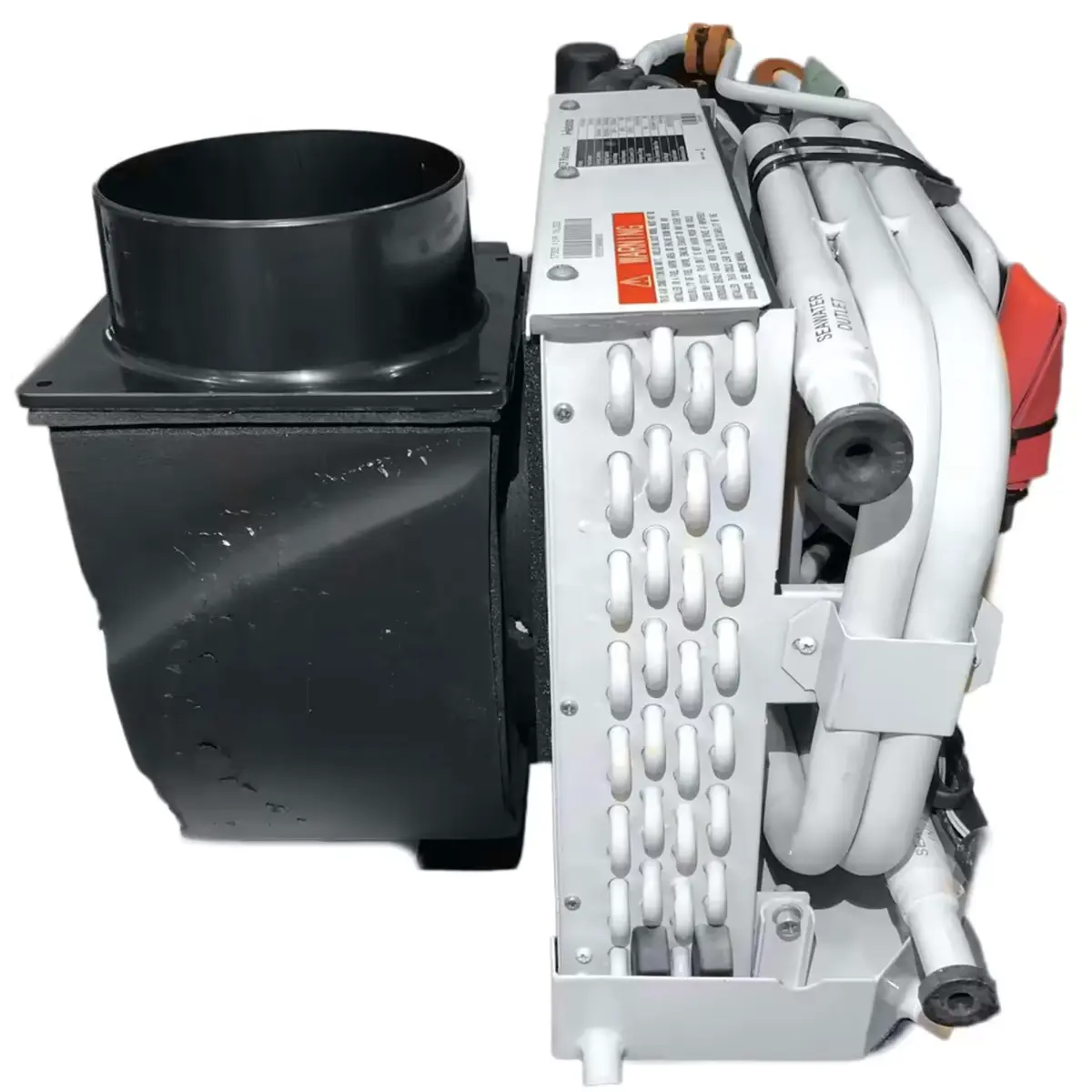

- High-velocity 360° rotatable blower helps manage directed airflow.
- Good replacement option for Dometic DTU10 – 230V applications.
Applications
This model is suitable for boats requiring a 230V marine air conditioner with 10,000 BTU cooling and reverse cycle heating. It is especially relevant for retrofit installations where buyers need a narrow-footprint unit with included digital control components. When replacing a Dometic DTU10 230V system, installers should review the noted ducting, condenser connection, and controller differences before installation.
Why Choose This Marine Air Conditioner
The FCF Platinum 10000 230V offers buyers a clearly specified marine A/C option with matched cooling and heating capacity, defined electrical requirements, and standard control hardware. Its replacement-focused design, marine-grade stainless steel frame, and documented compatibility notes for Dometic DTU10 230V systems make it easier to evaluate for upgrade work. The included core components and 2-year warranty add practical confidence without relying on guesswork.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | FCF Platinum 10000 |
| Part Number | 5011397A |
| Cooling Capacity | 10,000 BTU/h |
| Heating Capacity | 10,000 BTU/h |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Rated Current | 4.2 / 3.7A |
| Compressor LRA | 17A |
| Refrigerant | R410A |
| Refrigerant Charge | 1 lb |
| Seawater Inlet | 3/4" - 5/8" adapter included |
| Minimum Condenser Water Flow | 1.59 gal/min |
| Blower Connection Size | 100 mm / 4 in |
| Dimensions | 380 x 408 x 310 mm (15 x 16 x 12.2 in) |
| Weight | 27 kg / 60 lb |
| Warranty | 2-Year Warranty |

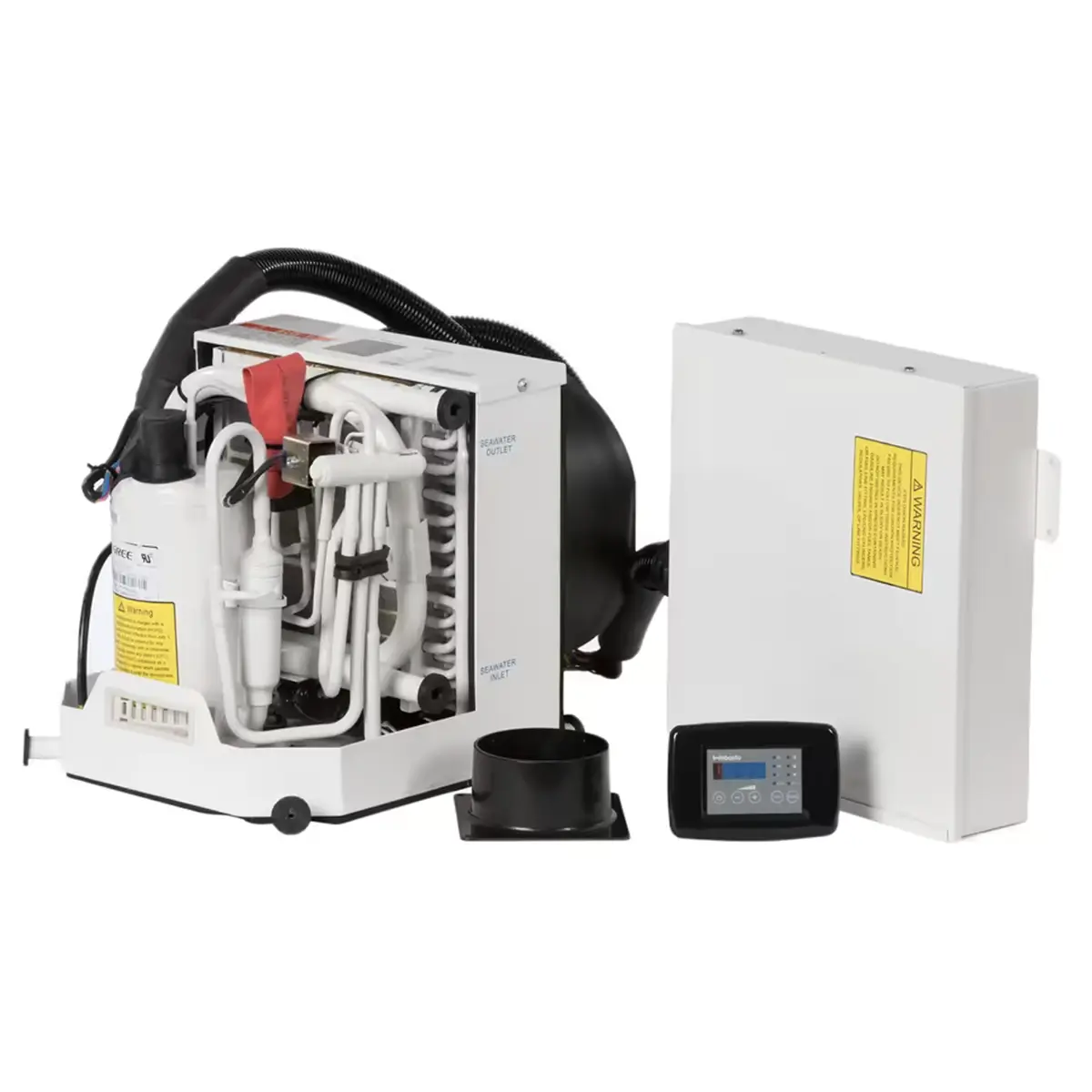

What's Included
- Webasto FCF Platinum 10000 BTU Marine Air Conditioner - 230V
- 4" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Platinum 10000 BTU Marine Air Conditioner 230V
Is this the 230V version of the Webasto FCF Platinum 10000?
Yes. This unit is listed as the 230V version and supports 50/60Hz operation. The technical data also gives a rated current of 4.2 / 3.7A, which should be checked against your boat’s electrical setup before installation.
Does this model include both heating and cooling?
Yes. The specifications list 10,000 BTU/h cooling capacity and 10,000 BTU/h heating capacity. The product data also confirms reverse cycle heating as a standard function.
Is a remote control included with this Webasto FCF Platinum unit?
No. The included items list specifically states that there is no remote control included as standard. The digital control with bezel is included, and remote control is noted as optional.
What should I know before replacing a Dometic DTU10 230V?
The Webasto uses 4" and 5" ducting, while the Dometic uses 5" and 6" ducting. The water connection also differs, so the included 5/8" to 3/4" adapter is needed, and the controller and cable must be replaced with the included Webasto components.
