Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V
$2,056.00
Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V is a high-capacity marine climate control unit with reverse cycle heating, digital control, and R410A refrigerant. Built for replacement-focused installations, it includes dual 5-inch duct collars, dual rotatable blowers, a remote mount electrical box, and a 2-year warranty.
Overview Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V
Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V is a 25,000 BTU marine climate control unit built for 230V, 50/60Hz operation with reverse cycle heating and standard digital control components. As part of the latest FCF Platinum series, this model is presented with an improved design and a higher BTU/h rating across a variety of ambient scenarios. The included digital display, controller, and cable help make retrofit planning more straightforward for buyers replacing existing marine A/C equipment.

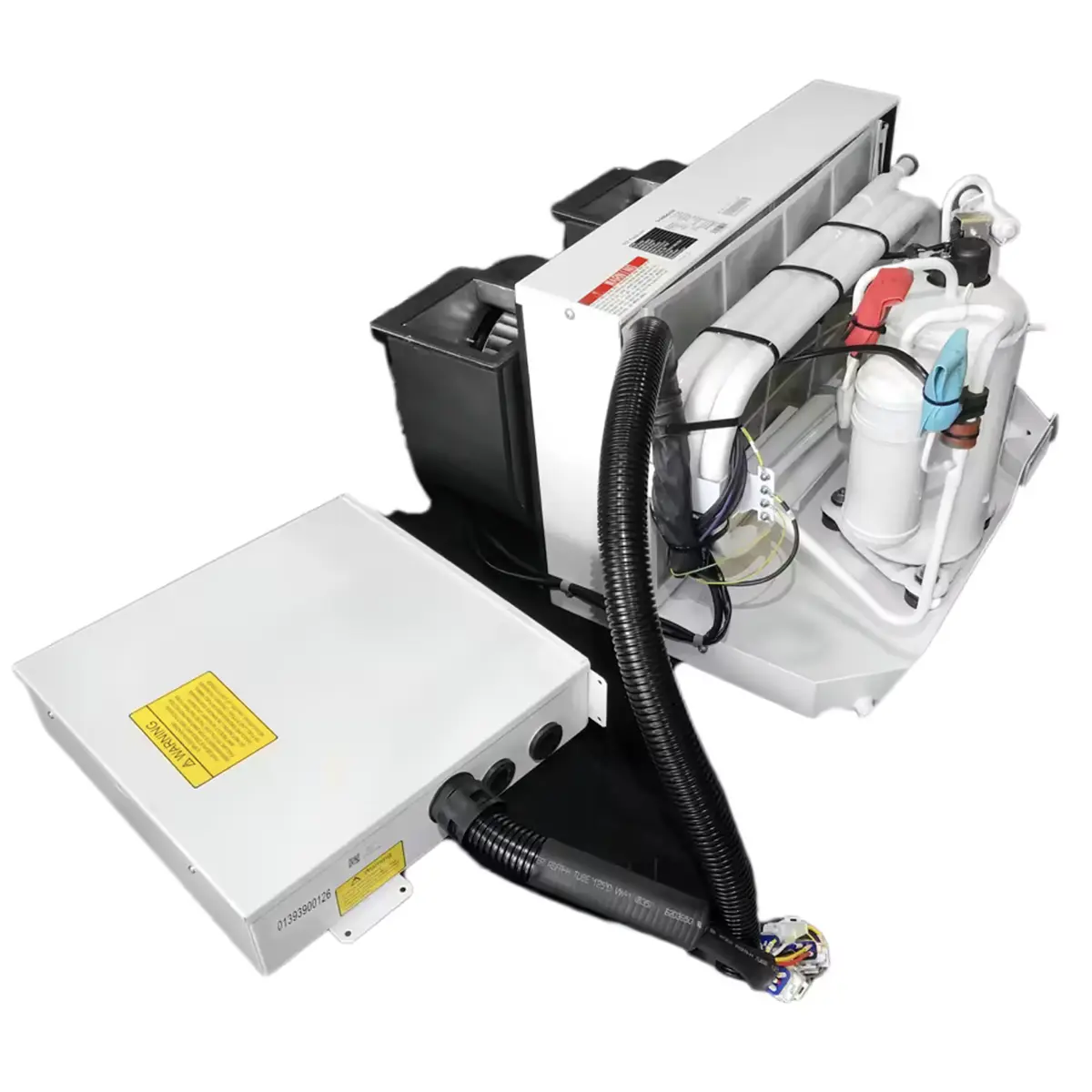

This model uses R410A refrigerant and features a long, slim footprint intended to support easier replacement installations. It is built with a marine-grade stainless steel frame and a proprietary balanced compressor, and it comes with two high-velocity 360° rotatable blowers plus two 5-inch ducting collars. For installations replacing certain Dometic units, the supplied notes highlight ducting, condenser connection, and controller differences that should be reviewed before fitting.
Key Features of Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V
- 25,000 BTU/h cooling capacity with 25,000 BTU/h heating capacity.
- 230V operation with 50/60Hz compatibility.
- Rated current of 6.8 / 8.0A and compressor LRA of 52A.
- Reverse cycle heating supports both cooling and heating use.

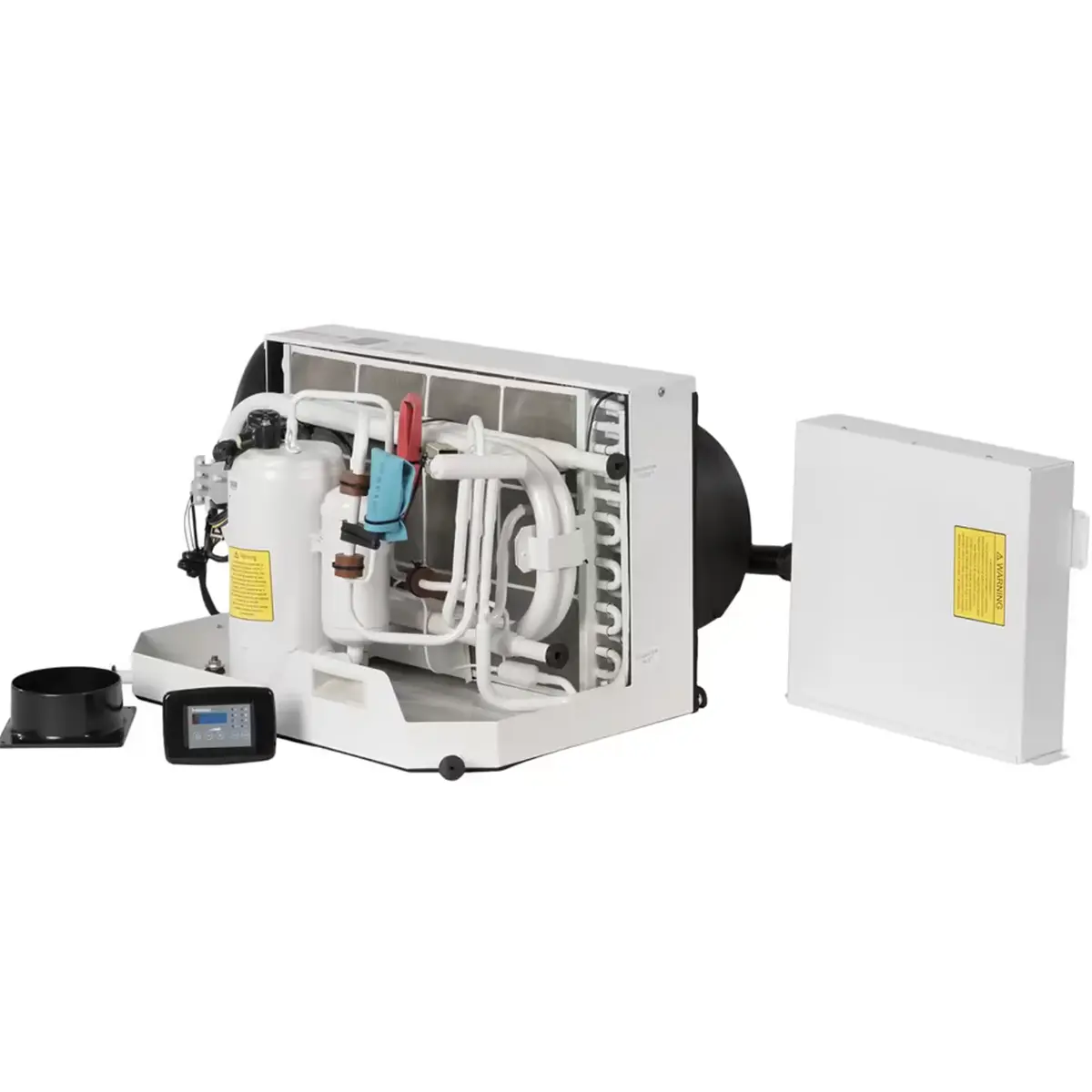

- Digital display, controller, and cable come standard.
- Long and slim footprint is designed to simplify replacement of existing units.
- Marine-grade stainless steel frame supports durability in marine conditions.

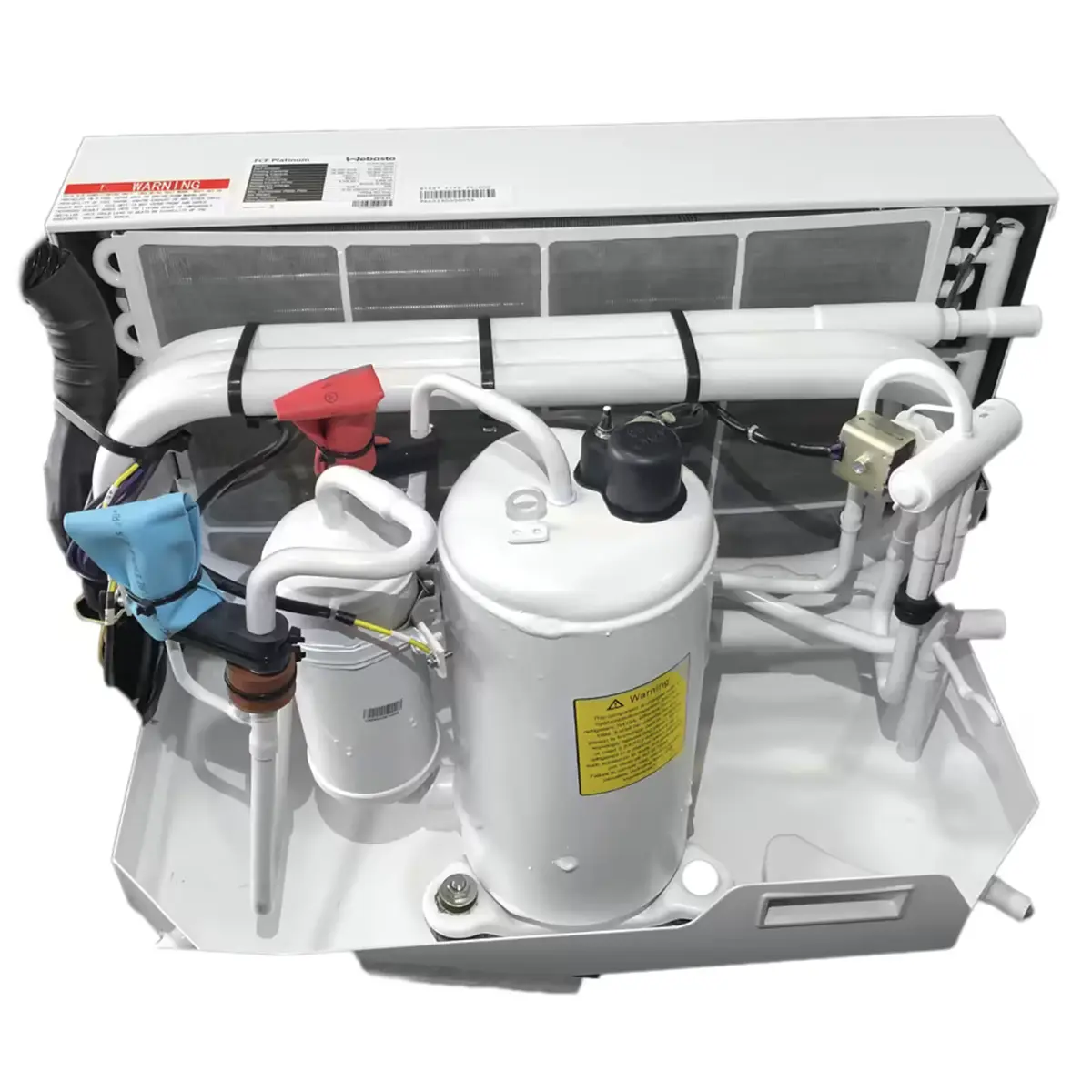

- Proprietary compressor is described as well balanced and quieter than earlier designs.
- Two high-velocity 360° rotatable blowers support broader airflow distribution.
- Uses R410A refrigerant with a refrigerant charge of 2.09 lb.
Applications
This model is suited to boats that require a 230V marine air conditioner with 25,000 BTU cooling and reverse cycle heating. It is especially relevant for retrofit projects where a replacement-oriented footprint, included digital controls, and dual blower configuration support installation planning. Buyers replacing an existing Dometic unit should review the noted ducting, condenser connection, and controller differences before installation.
Why Choose This Marine Air Conditioner
The FCF Platinum 25000 230V gives buyers a clearly specified high-capacity marine A/C option with matched cooling and heating capacity, defined electrical requirements, and standard control hardware. Its dual blower setup, marine-grade stainless steel frame, and replacement-focused layout make it practical for larger retrofit applications where airflow coverage and installation detail matter. The documented technical data and 2-year warranty add useful buying clarity without relying on unsupported claims.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | FCF Platinum 25000 |
| Part Number | 5011403A |
| Cooling Capacity | 25,000 BTU/h |
| Heating Capacity | 25,000 BTU/h |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Rated Current | 6.8 / 8.0A |
| Compressor LRA | 52A |
| Refrigerant | R410A |
| Refrigerant Charge | 2.09 lb |
| Seawater Inlet | 3/4" - 5/8" adapter included |
| Minimum Condenser Water Flow | 6.34 gal/min |
| Blower Connection Size | 125 mm / 5 in |
| Dimensions | 529 x 595 x 386 mm (20.83 x 23.43 x 15.2 in) |
| Weight | 60.5 kg / 133 lb |
| Warranty | 2-Year Warranty |
What's Included
- Webasto FCF Platinum 25000 BTU Marine Air Conditioner - 230V
- 2 x 5" ducting collars
- 2 x high-velocity 360° rotatable blowers
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V
Does this unit provide both cooling and heating?
Yes. The technical specifications list 25,000 BTU/h cooling capacity and 25,000 BTU/h heating capacity. The product details also confirm reverse cycle heating as a standard function.
What is included with this Webasto FCF Platinum 25000 unit?
The listed package contents include two 5" ducting collars, two high-velocity 360° rotatable blowers, a remote mount electrical box, digital control with bezel, air filter, and R410A refrigerant. The product data states that remote control is optional and not included as standard.
What should be checked when replacing an existing Dometic unit?
The installation notes say the Webasto uses 4" and 5" ducting, while the Dometic setup uses 5" and 6" ducting. They also note a different condenser connection that uses the included 5/8" to 3/4" adapter, and confirm that the controller and cable must be replaced with the included Webasto components.
Which technical specs matter most before ordering?
Check the 230V / 50/60Hz electrical requirement, rated current of 6.8 / 8.0A, and minimum condenser water flow of 6.34 gal/min. You should also verify the unit dimensions of 20.83 x 23.43 x 15.2 inches, the 5-inch blower connection size, and the 133 lb unit weight for installation planning.
