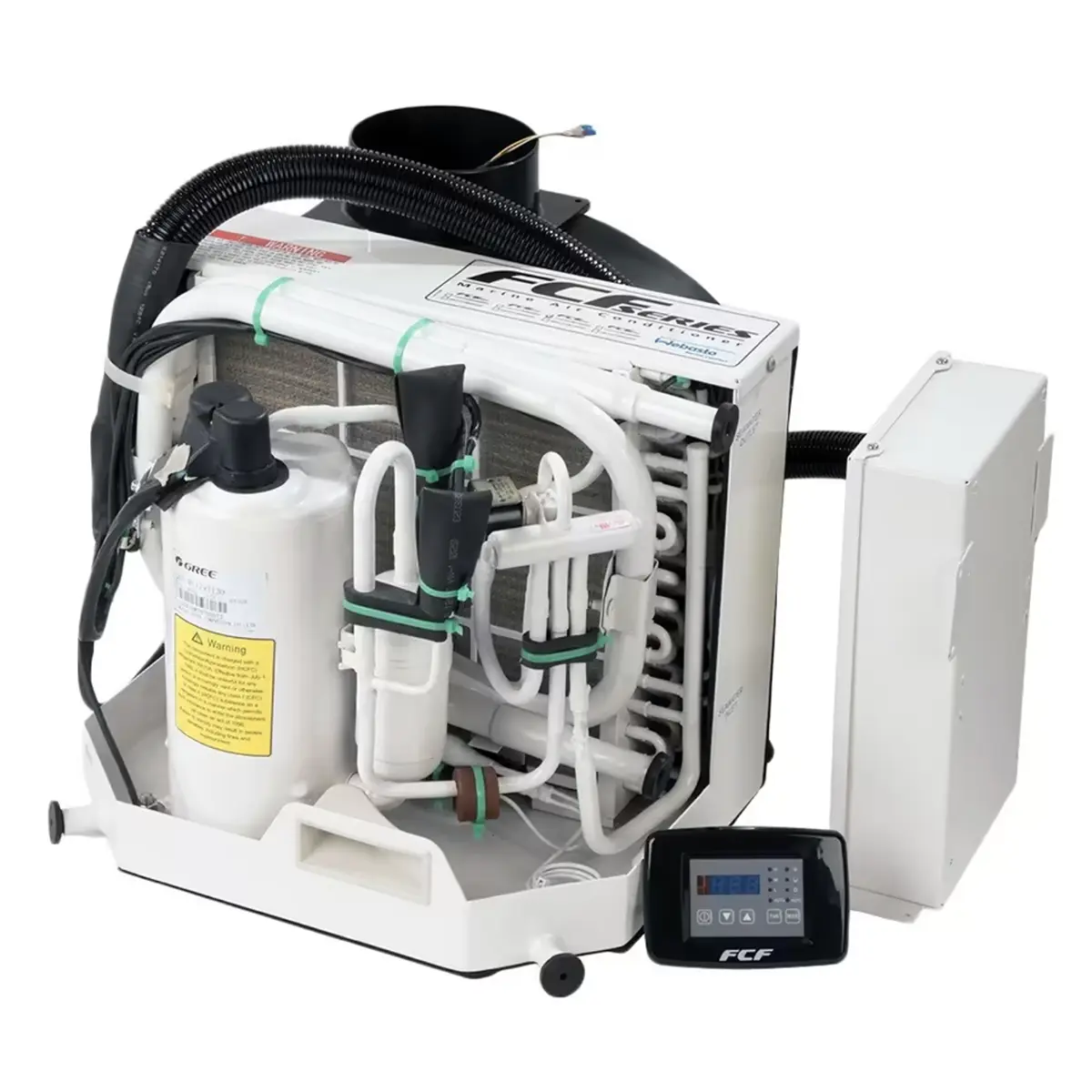

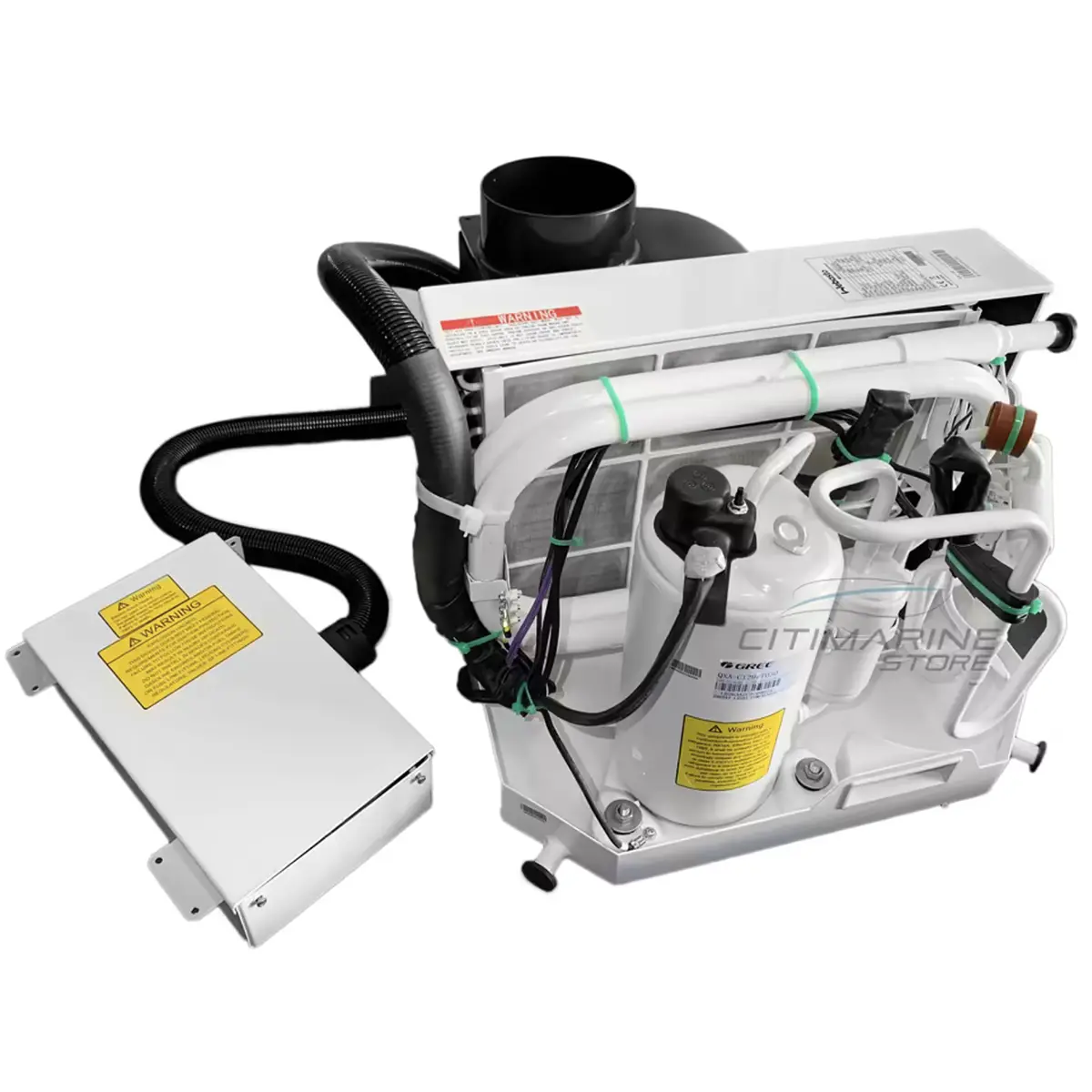

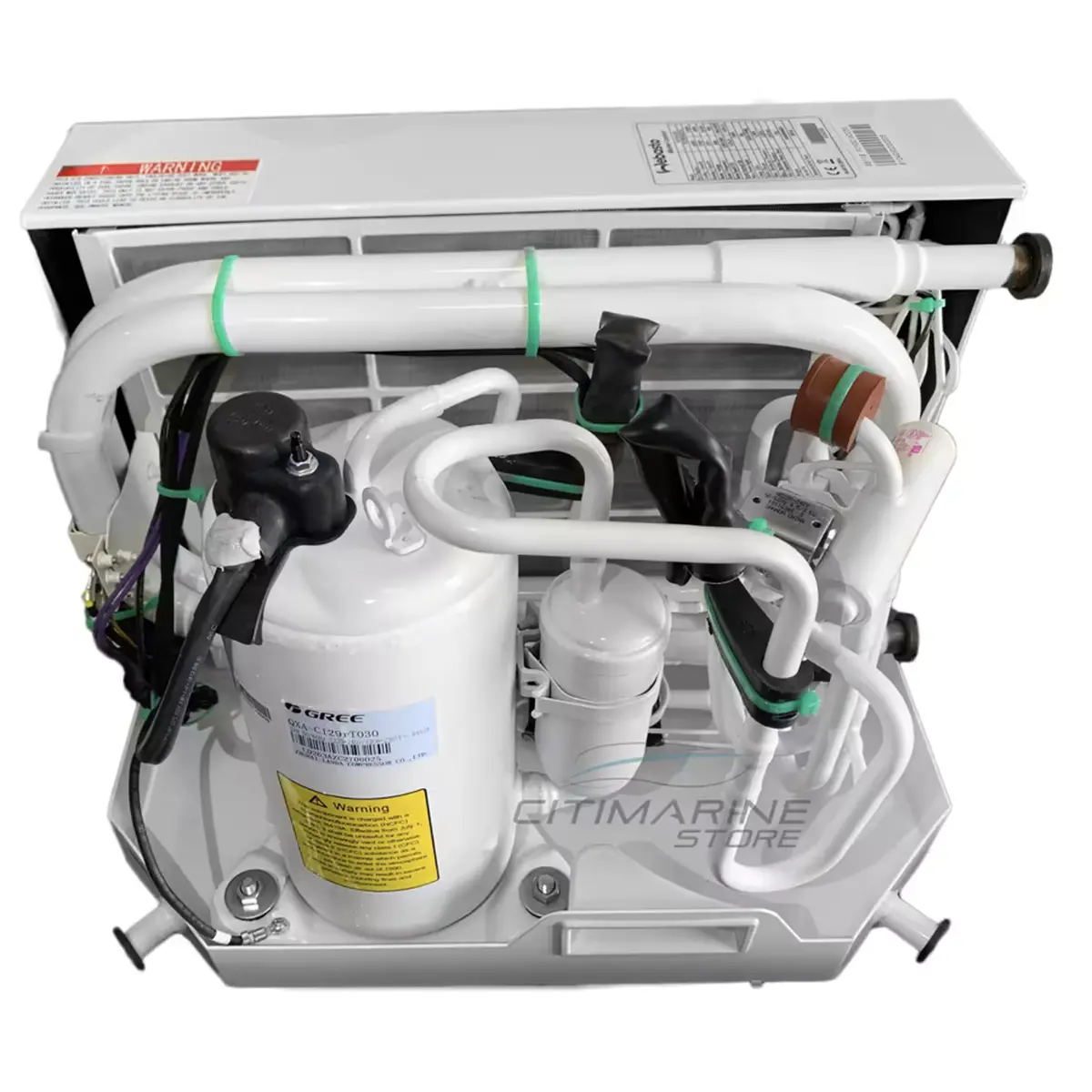

Webasto FCF Classic 12000 BTU Marine Air Conditioner 230V
$1,098.00
The Webasto FCF Classic 12000 BTU Marine Air Conditioner 230V is a self-contained unit with reverse cycle heating, digital control, and a 360° rotatable blower. It is suited for retrofit projects and is noted as a replacement option for Dometic ECD10k 230V systems.
Overview Webasto FCF Classic 12000 BTU Marine Air Conditioner 230V
Webasto FCF Classic 12000 BTU Marine Air Conditioner 230V is a self-contained marine air conditioning unit designed for cabin cooling with reverse cycle heating. This 230V version combines a balanced ultra-silent compressor, 3-speed high-velocity blower, digital control, and compact dimensions in a corrosion-resistant assembly with a stainless steel chassis, stainless steel condensation tray, baked-on enamel finish, and gold-anodized evaporators.
Key Features of Webasto FCF Classic 12000 BTU Marine Air Conditioner 230V
- 12,000 BTU cooling capacity for marine cabin climate control.
- 230V power configuration with 50/60 Hz frequency.
- Reverse cycle heating adds heating capability in cooler conditions.
- Ultra-silent compressor is designed to reduce vibration and operating noise.
- 3-speed, 360° rotatable blower supports flexible airflow direction.
- Replaceable air filter helps keep circulated air cleaner.
- Multi-inlet port evaporator supports the system’s air handling design.
- Stainless steel condensation tray and chassis help improve corrosion resistance.
- Digital control with bezel and remote control are included.
- Listed as a good replacement option for Dometic ECD10k 230V installations.
Applications
This model is intended for marine cabin air conditioning and heating where a self-contained 230V unit is required. It is also a practical option for retrofit work, especially when replacing a Dometic ECD10k 230V unit. Installation planning should account for the stated ducting, water line, and controller differences.
Why Choose This Marine Air Conditioner
This FCF Classic model gives buyers a clearly defined combination of 12,000 BTU output, 230V power, reverse cycle heating, and included controls in one compact assembly. It also offers confirmed retrofit value through the included adapter and replacement notes for Dometic ECD10k 230V systems. For buyers comparing exact marine HVAC specifications, the published electrical data, blower output, dimensions, included components, and 2-year warranty make this variant easier to evaluate before purchase.
Product Specifications
| Feature | Details |
|---|---|
| Part Number | FCF0012023G |
| Cooling Capacity | 12,000 BTU/h |
| Voltage | 230V |
| Frequency | 50/60 Hz |
| Rated Current | 4.5 A |
| Refrigerant | R410A |
| Minimum Supply Air | 50 in² (323 cm²) |
| Minimum Return Air | 100 in² (645 cm²) |
| Blower Output | 410 cfm (696 m³/h) |
| Ducting Collar | 5 in (127 mm) |
| Seawater Inlet / Outlet | 3/4 in (19 mm) |
| Drain Pan Outlet | 5/8 in (15.9 mm) |
| Dimensions | 15" L x 13" H x 17.2" D |
| Weight | 68 lbs / 31 kg |
| Warranty | 2-Year Warranty |
What's Included
- Webasto FCF Classic 12,000 BTU marine air conditioner unit
- 5" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- Remote control
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Classic 12000 BTU Marine Air Conditioner 230V
Is this a self-contained marine air conditioner?
Yes. The product data identifies this model as a self-contained marine air conditioner. It is designed as a complete unit for onboard cabin climate control.
Does this 230V model include heating as well as cooling?
Yes. This unit includes reverse cycle heating in addition to 12,000 BTU cooling capacity. That makes it suitable for buyers who want both cooling and heating from the same system.
What is included with the Webasto FCF0012023G?
The listed contents include the 5-inch ducting collar, 360° rotatable blower, remote mount electrical box, digital control with bezel, air filter, remote control, and R410A refrigerant. The 5/8-inch to 3/4-inch adapter is also noted as included with the unit for installation use.
Does this unit come with a warranty?
Yes. The provided product data lists a 2-Year Warranty for this model. If warranty registration or claim procedures are important for your store, those details would need to be handled separately because they are not included in the supplied specifications.
