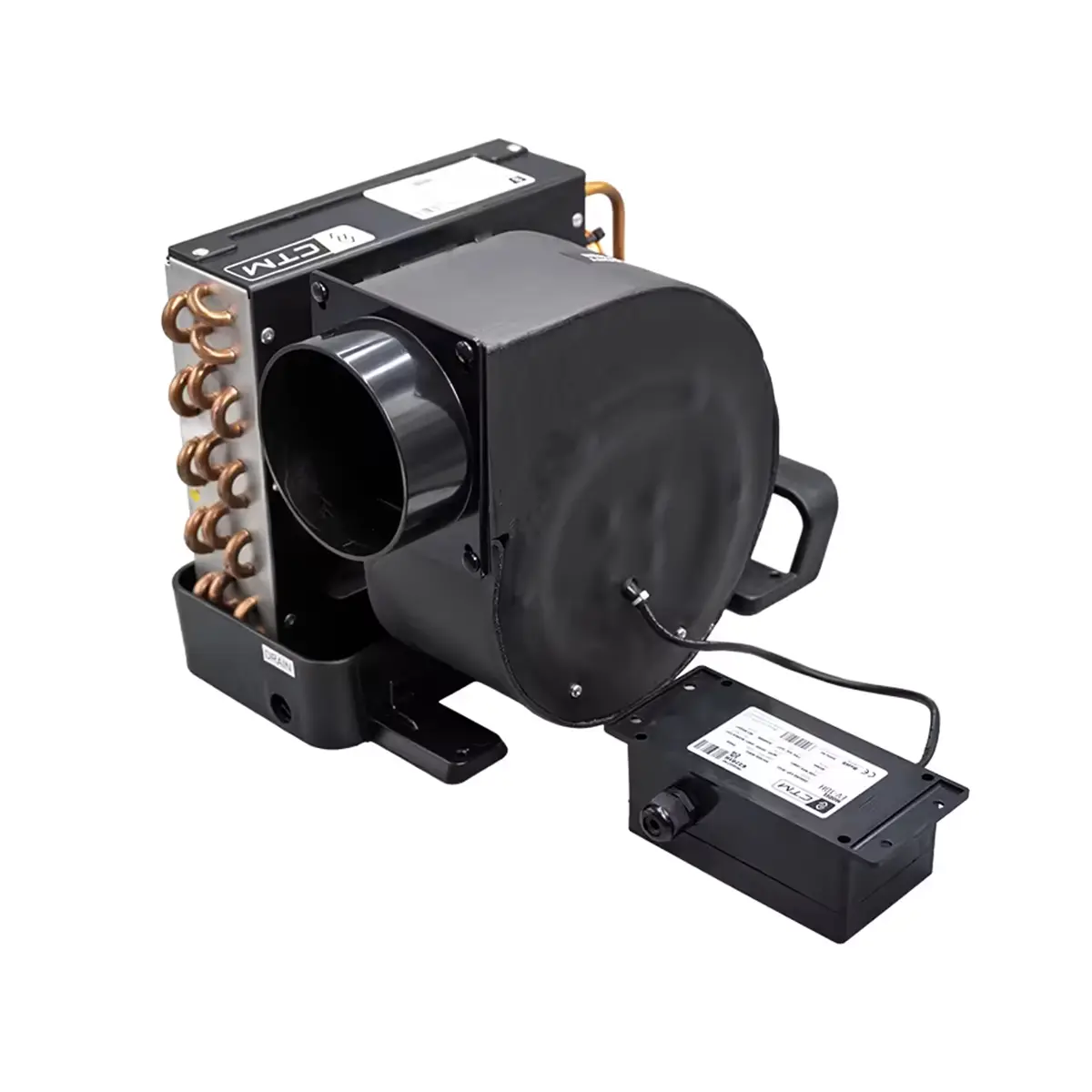

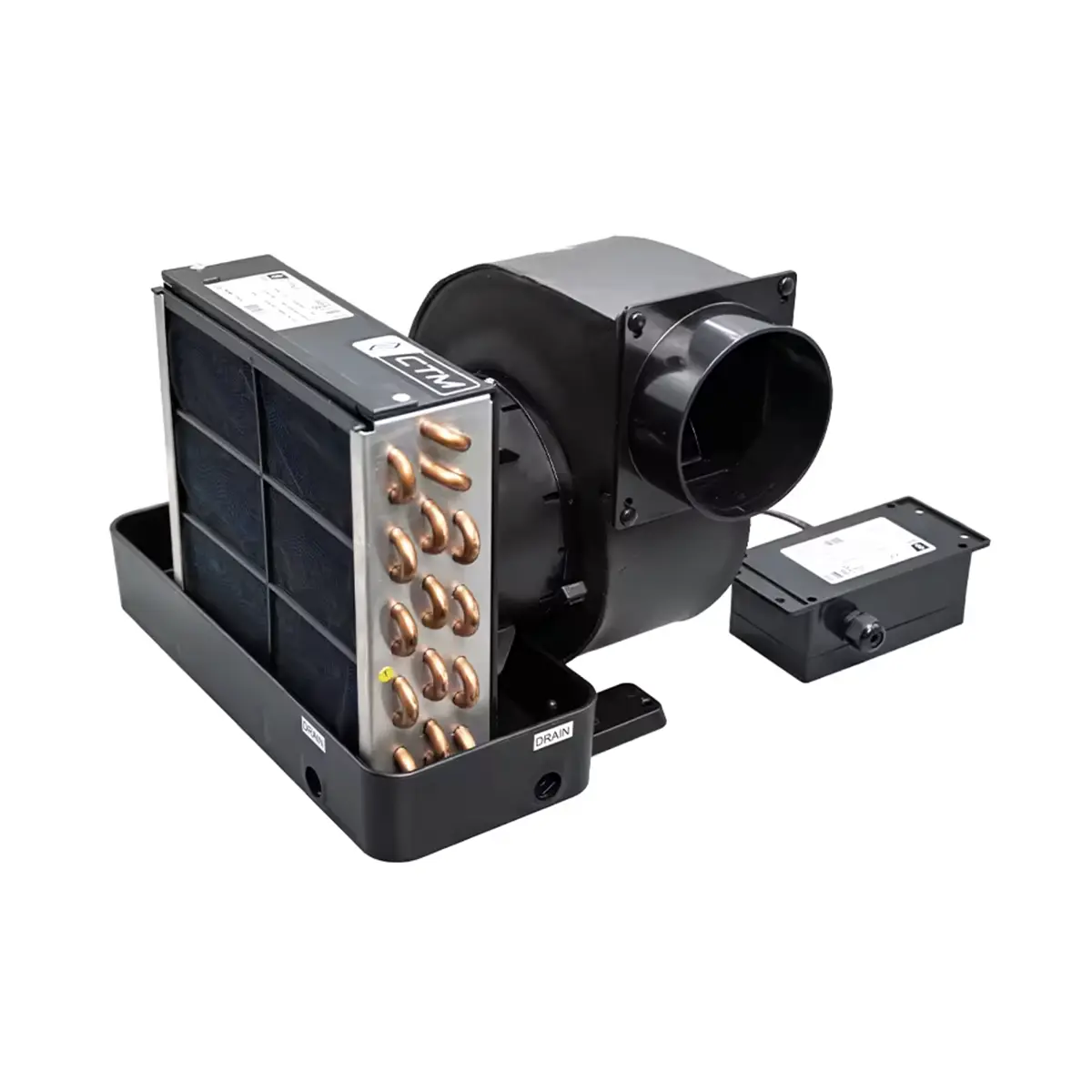

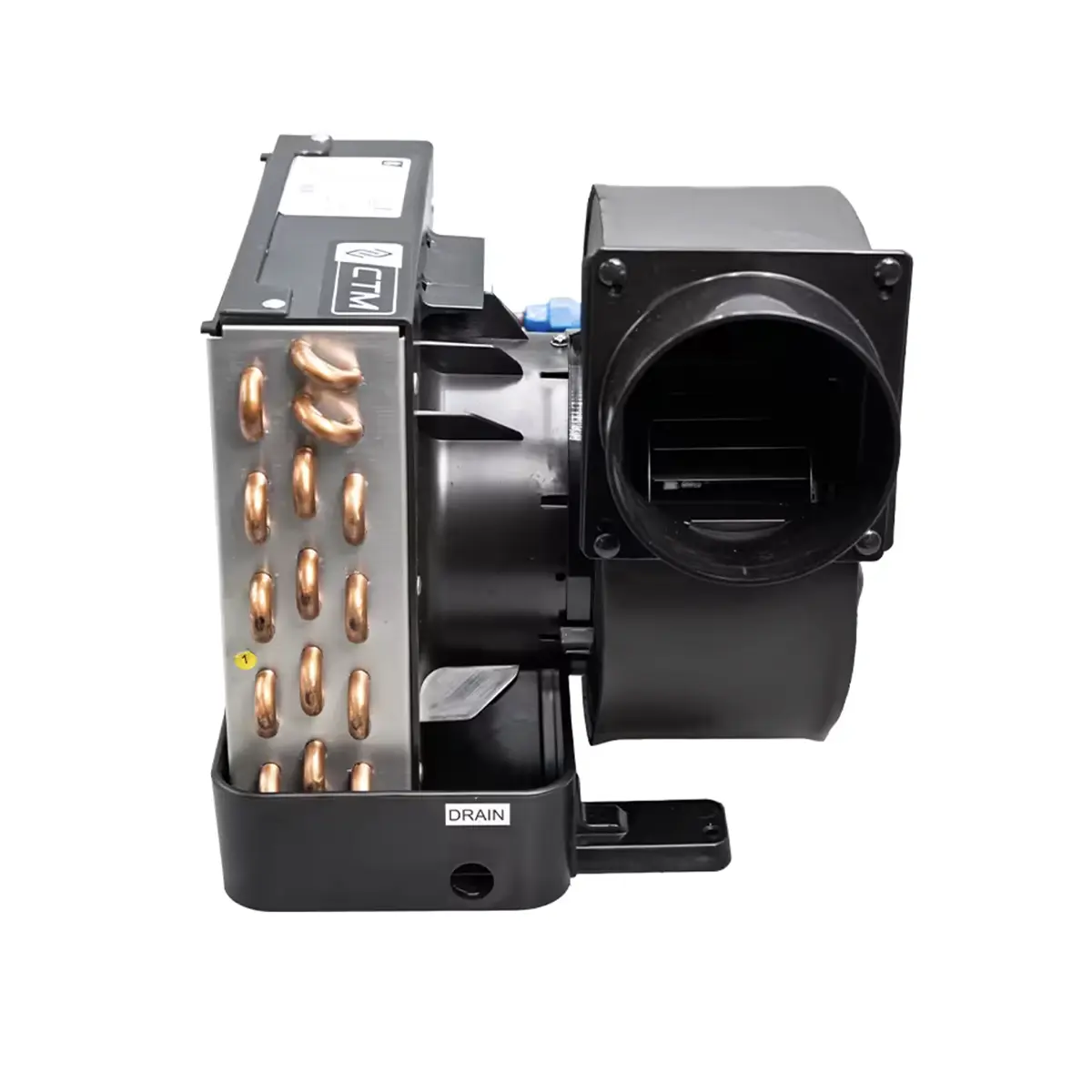

CTM EV-12 12000 BTU Marine Air Conditioner 115V
$635.00
The CTM EV-12 12000 BTU Marine Air Conditioner 115V is a marine split A/C evaporator unit built for 100-120V, 50/60Hz operation. It features R410A refrigerant compatibility, 350 CFM blower airflow, stainless steel hardware, and a 2-year warranty for marine applications.
Overview CTM EV-12 12000 BTU Marine Air Conditioner 115V
CTM EV-12 12000 BTU Marine Air Conditioner 115V is a marine split A/C evaporator unit built for applications requiring 12,000 BTU capacity with 100-120V, 50/60Hz electrical compatibility. This model is designed as an evaporator / air handler unit and combines marine-ready construction details such as stainless steel bolts and a stainless steel structural pan with clearly stated operating specifications including R410A refrigerant, 350 CFM blower airflow, and 1200 RPM blower speed.
For buyers comparing replacement and installation options, the EV-12 is presented as suitable for new installs and as a drop-in replacement for major marine A/C brands including Dometic, Marine Air, and Cruisair. That makes it a practical choice when matching a 115V-class marine split A/C evaporator to an existing onboard system layout.
Key Features of CTM EV-12 12000 BTU Marine Air Conditioner 115V
- 12,000 BTU evaporator capacity for marine split A/C systems.
- 100-120V, single-phase, 50/60Hz compatibility for this specific model variant.
- R410A refrigerant specification for buyers matching system requirements.
- 350 CFM blower airflow and 1200 RPM blower speed.
- Stainless steel bolts and stainless steel structural pan for corrosion-resistant marine construction.
- Suitable for new installations or replacement use where the stated specifications align.
- Listed as a drop-in replacement option for Dometic, Marine Air, and Cruisair systems.
- Backed by a 2-year warranty based on the provided product data.
Applications
This unit is intended for marine split air conditioning setups that require a 12,000 BTU evaporator / air handler. It can be considered for new marine HVAC installations or retrofit projects where buyers need to match 100-120V operation, R410A refrigerant, and the specified suction and discharge connection sizes.
Why Choose This Marine Air Conditioner
The CTM EV-12 offers clear product identification for buyers who want a 12,000 BTU marine evaporator unit without unclear or missing specification details. Its published data covers the core points that matter during selection, including voltage range, frequency, refrigerant type, blower performance, fuse rating, and line connection sizes.
This model also brings practical value for replacement projects because it is described as compatible as a drop-in replacement for several major marine A/C brands. Combined with stainless steel structural components and a 2-year warranty, it gives buyers a straightforward option when sourcing a 115V marine split A/C evaporator unit.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | EV-12 |
| Capacity | 12,000 BTU |
| Voltage | 100-120 V |
| Frequency | 50-60 Hz |
| Phase | 1 |
| Refrigerant Type | R410A |
| Blower Airflow | 350 CFM |
| Blower Speed | 1200 RPM |
| Input Rotor Amps | 1.5 A |
| Locked Rotor Amps | 1.8 A |
| Max Fuse | 3 A |
| Discharge Connection Size | 1/4 in (6.35 mm) |
| Suction Connection Size | 3/8 in (9.52 mm) |
| Blower Duct Size | 5 in |
| Net Weight | 19.84 lbs / 9 kg |
| Construction Details | Stainless steel bolts and stainless steel structural pan |
| Warranty | 2-Year |
What's Included
- CTM EV-12 12,000 BTU evaporator marine split A/C unit
Frequently Asked Questions About CTM EV-12 12000 BTU Marine Air Conditioner 115V
Is the CTM EV-12 a complete self-contained marine air conditioner?
No. The product data describes this model as an evaporator and marine split A/C unit, which indicates it is part of a split-system setup rather than a self-contained air conditioner. It is presented specifically as an evaporator / air handler.
What power range does the CTM EV-12 require?
This model is rated for 100-120 V, single-phase power and supports both 50 Hz and 60 Hz operation. The specification also lists input rotor amps at 1.5 A, locked rotor amps at 1.8 A, and a maximum fuse rating of 3 A.
Can the EV-12 be used to replace an existing marine evaporator unit?
The provided description states that it works as a drop-in replacement for major marine A/C brands including Dometic, Marine Air, and Cruisair. Buyers should still verify that the required voltage range, refrigerant type, and connection sizes match their existing system before purchase.
What refrigerant and line sizes are specified for this unit?
The CTM EV-12 is specified for R410A refrigerant. The discharge connection size is listed as 1/4 inch (6.35 mm), while the suction connection size is 3/8 inch (9.52 mm).
